Auto Reset – Color Coded

LIMITED EDITION COLLECTIBLE
In Stock

Current Rating (A)

Clear

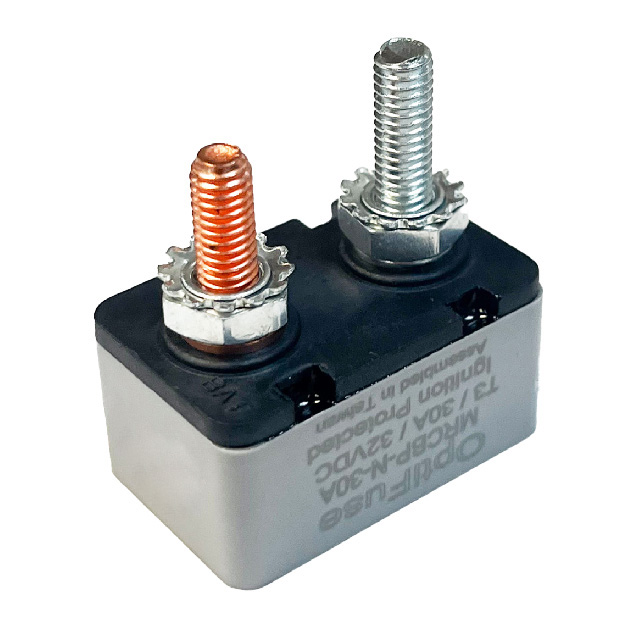

Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.
Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.
Ignition rated and SAE J1171 compliant for use in marine engine compartments, with preassembled brackets for convenient mounting when installed individually.
Designed with industry standard color coding to allow for easy amperage identification.
NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.

Dimensions	2 × 0.8 × 1.3 in
Current Rating (A)	15, 20, 25, 30, 40, 50
Reset Type	Automatic Reset – Type I
Circuit Breaker Type	10-32 Stud (Shortstop Style) Circuit Breakers
Voltage Rating - DC (VDC)	32
IP Rating	IP 63
Approval Agency	SAE J553; SAE J1171
