Stainless Steel Chain

Chain Size:

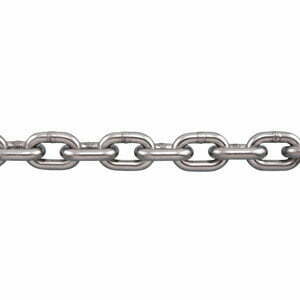

Our imported grade S4 stainless steel chain is designed for use with windlasses and has short ISO links that are made to “G4” specifications. Imported stainless steel ISO windlass chain will fit many standard U.S. windlasses and can be used for a variety of demanding industrial and marine applications that require added corrosion resistance. The stainless steel finish gives a refined look to the anchor lead chain.

• Type 316L stainless steel
• Fits many standard windlasses; verify with the windlass manufacturer prior to purchase

Important Information About Chain:

1. Never Exceed the Working Load Limit of Chain
The Working Load Limit (WLL) is the maximum load that should ever be applied to the chain, even when new and when the load is uniformly applied. Working Load Limit applies only to straight line pulls. When using multiple leg chain slings, the Working Load Limit of each leg will have to be reduced considerably depending on the angle of the sling legs. Consult industry recommendations for information, such as ASME B 30.9.

When in doubt as to the Working Load Limit of the chain, refer to the periodic, permanently embossed grade marking on chain links. Proof Coil Chain is identified by P.C. or 30 or 3 or 28; High Test Chain by H.T. or 43 or 40 or 4; Transportation Chain by 70 or 7; Alloy Chain by 100 or 10 and 120 or 12.

2. Attachments must have at least the same Working Load Limit as the chain used
Hooks, links, shackles, etc. must be of suitable material and strength to provide adequate safety protection.

3. Destroy Defective Chain
Destroy the defective chain rather than discard the chain that is judged to be defective. Chain that is not destroyed might be used again by someone not aware of the hazard associated with that use. Destroying chain is best done by cutting it up into short pieces.
